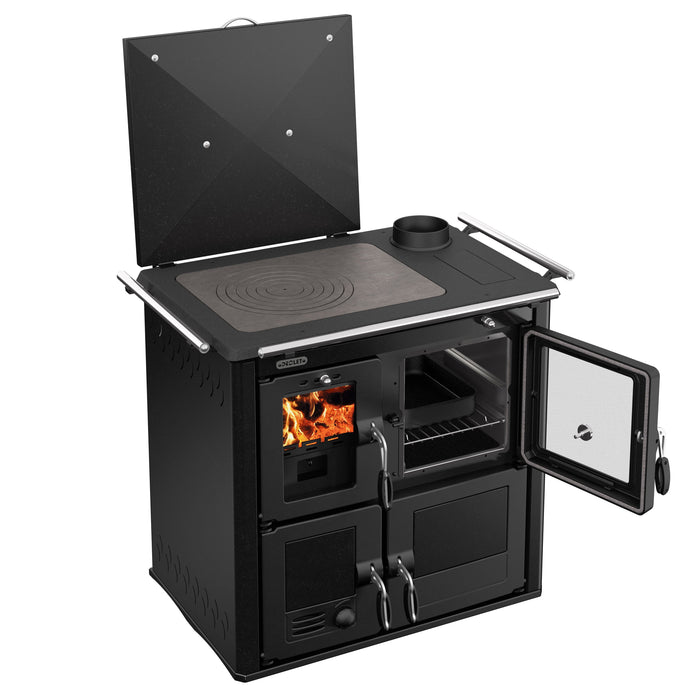

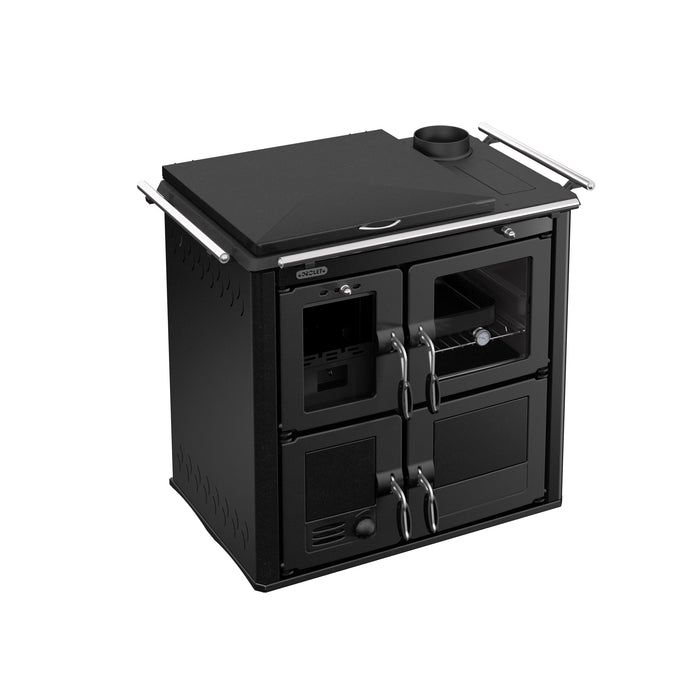

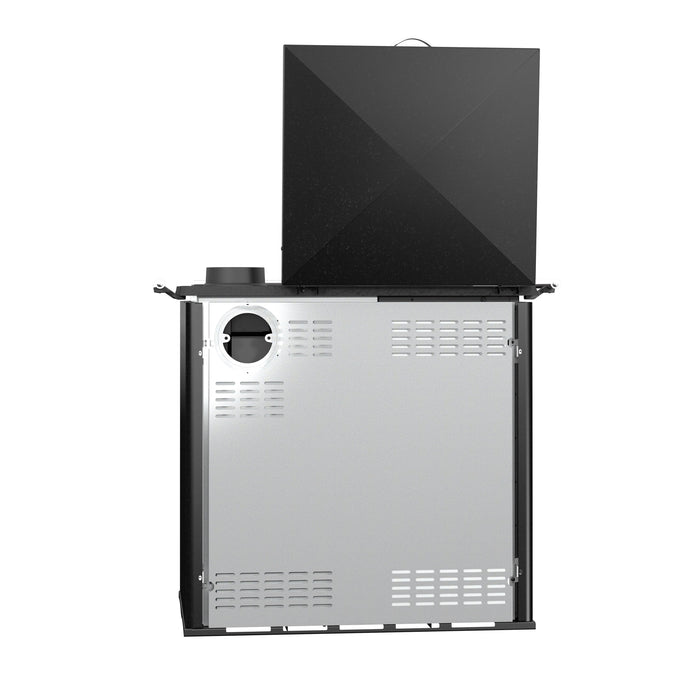

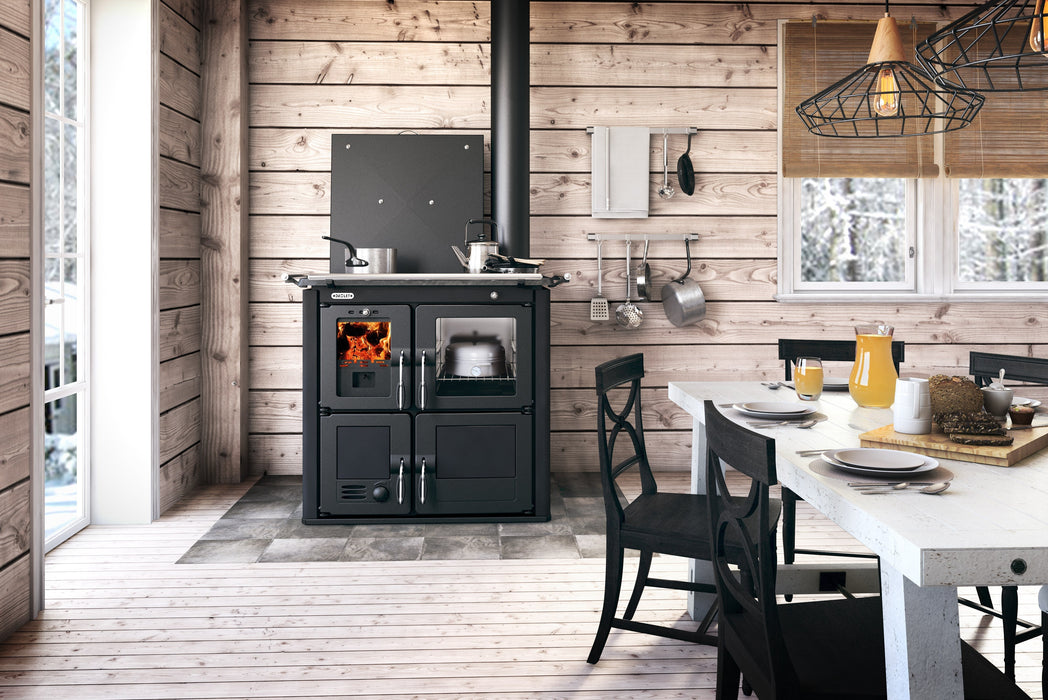

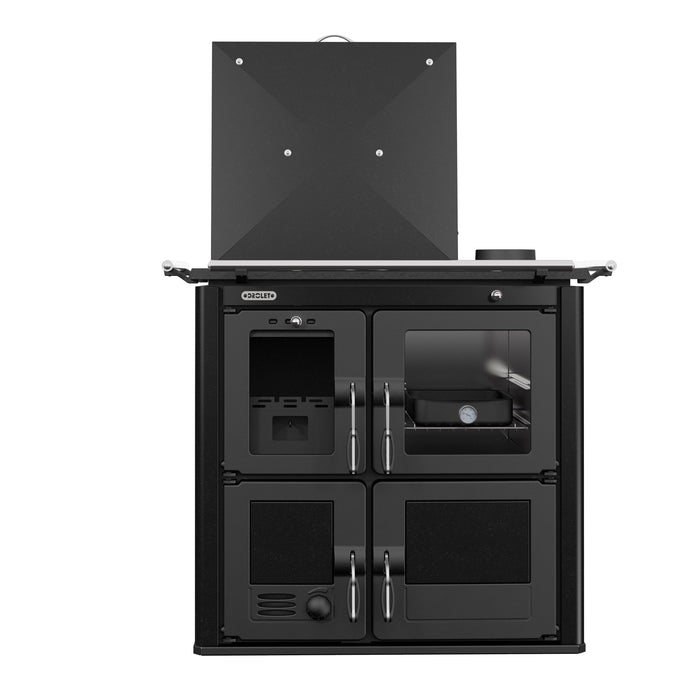

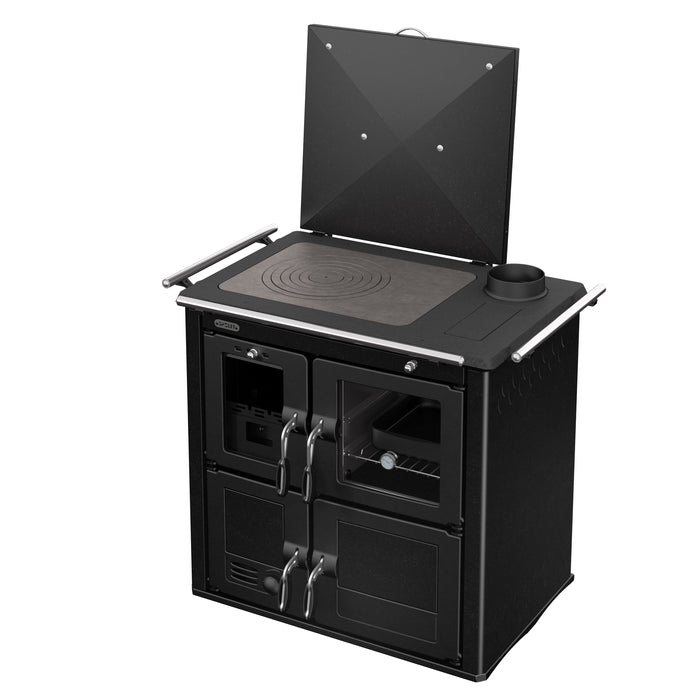

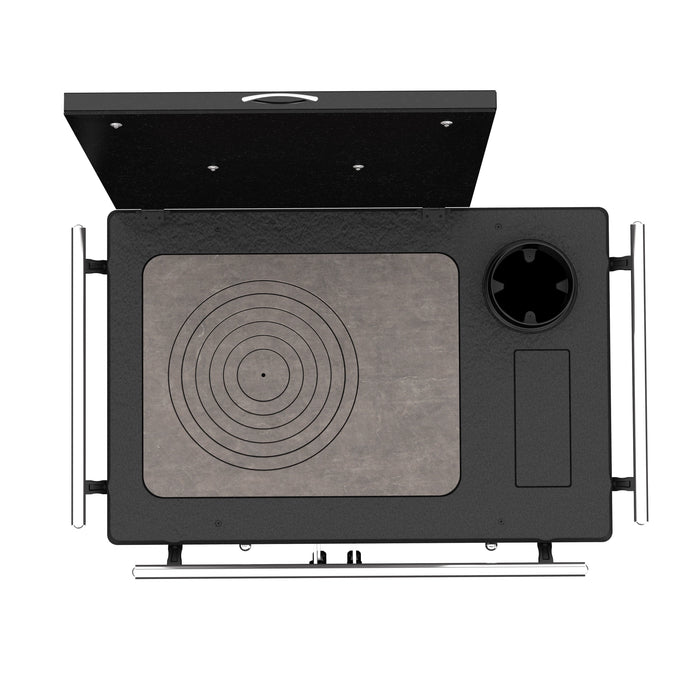

Drolet Outback Chef Wood Burning Cook Stove DB04800

DroletSKU: DB04800
filler

Price:
Sale price$3,799.00

Description

Drolet Outback Chef Wood Burning Cook Stove DB04800

Size 40'' W X 25 7/8'' D X 33 5/8'' H
Maximum log length 16''

FEATURES:

Drolet offers all the Italian know-how in this wood burning cookstove, specifically designed for simple use and the unrivalled cooking of food. Also appreciated for the radiant heat it provides, this is an absolute must have for peaceful cottage life.

When Versatility Rhymes with Elegance

This kitchen appliance, with its modern and refined charm, is distinguished by a classic look that will suit any interior. The doors and cast-iron top blend perfectly with the anthracite enameled steel side panels and its protective cooktop cover.

Best Value for Money

Available at an unbeatable price, this wood cookstove has several advantages: four doors giving practical access to the fire, ashes, oven (11 3/8"W x 17 3/4"D x 11 3/4"H), stove drawer and accessories; stainless steel oven with an adjustable grill; stainless steel and vermiculite combustion chamber; fire viewing oven glass in vitroceramics with an integrated thermometer; robust lever handles; chrome handrails; hot air bypass trap for regulating oven heat.

The Outback Chef gives off heat, but its design makes it primarily a cooking appliance. So when the stove is on, you will heat the room, but you will not benefit from slow combustion heat like a high efficiency wood stove.

Outback Chef wood burning cook stove Installation manual (English and French versions)
(PDF - 8.3 Mo)

Outback Chef wood burning cook stove operation manual (English and French versions)
(PDF - 8.6 Mo)

Outback Chef wood burning cook stove dimensions
(PDF - 0.1 Mo)


 *Any installation must be done according to the data and drawings detailed in the owner’s manual.

SPECIFICATIONS:

Fuel type Dry cordwood (16" recommended)
Overall firebox volume-ft³ 1.08
High-efficiency certified appliance Exempt
Maximum log length 16''
Log positioning Loading over depth
Chimney diameter 6"
Flue outlet diameter 6''
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Baffle type High quality vermiculite
Approved for a mobile home installation No
Shipping Weight 545 lb (248 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 7 3/8'' X 10 3/4''
Overall dimension (Height) 33 5/8''
Overall dimension (Width) 40''
Overall dimension (Depth) 25 7/8''
Door opening – dimension (Height) 6 1/2''
Door opening - dimension (Width) 8 3/8''
Firebox – dimension (Height) 10 1/4''
Firebox – dimension (Width) 8 3/8''
Firebox – dimension (Depth) 16 3/4''
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
  Canada United-States
  Single wall pipe Double wall pipe Single wall pipe Double wall pipe
Clearance – back wall 15" 14" 11" 11"
Clearance – side wall 9" 9" 9" 9"
Clearance – top (measured from the platform on which the appliance is installed)** 84" 84" 84" 84"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
