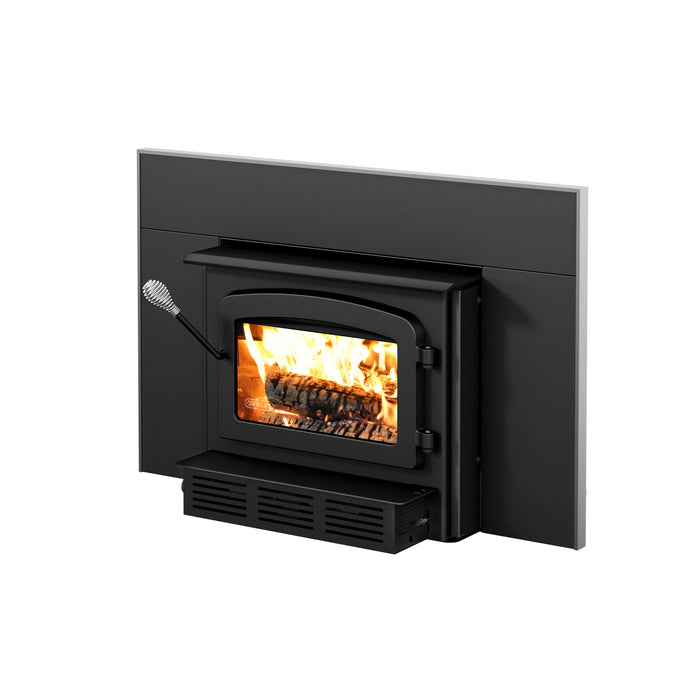

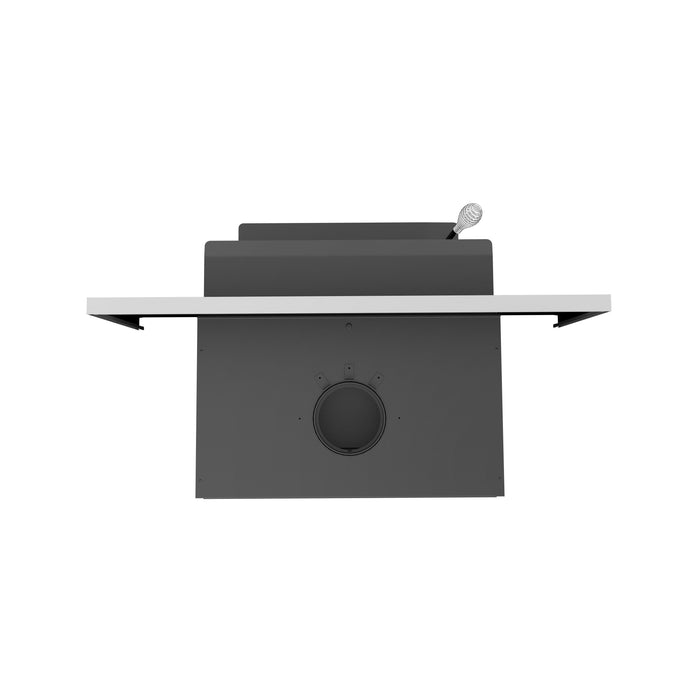

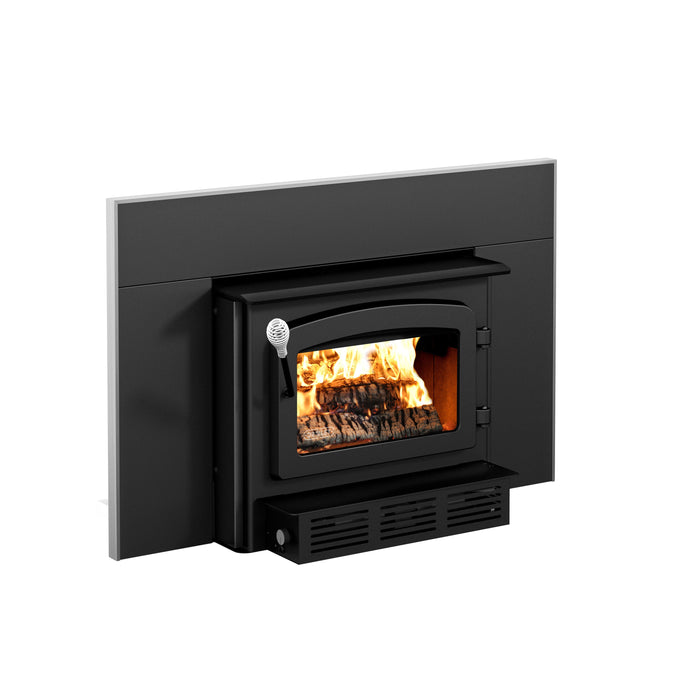

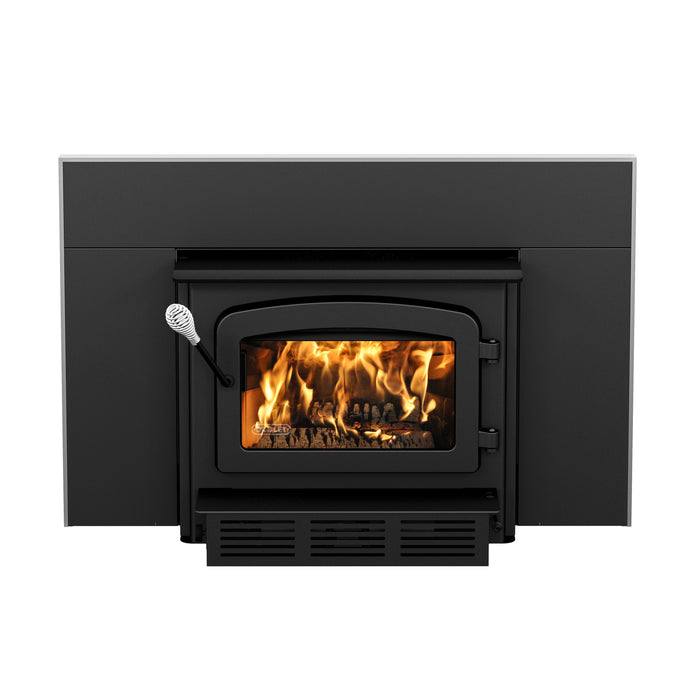

Drolet Escape 1800-I Wood Insert DB03125

DroletSKU: DB03125
filler

Price:
Sale price$1,699.00

Description

Escape 1800-I Wood Insert DB03125

Heating area 500 - 2,100 Ft2
Size 28 3/8" W X 26 3/8" D X 23 1/8" H
Maximum log length 20"
Average particulate emissions rate (1) 1.54 g/h

FEATURES:

Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 1.54 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!

Included: blower, ceramic glass, ash lip, air damper

  • Burn time up to 8 hours
  • Up to 20'' logs
  • 2.4 ft³ firebox
  • Robust 5/16'' steel
  • EPA certified
  • Proudly made in Canada
  • Limited lifetime warranty

Options: faceplate (regular or large) with brushed nickel trim or cuttable faceplate, firescreen, fresh air intake

Escape 1800-I insert install & owner's manual
(PDF - 15.4 Mo)

Escape 1800-I insert dimensions
(PDF - 0.5 Mo)


Government incentives may apply to this product.
LEARN MORE

*Any installation must be done according to the data and drawings detailed in the owner’s manual.

SPECIFICATIONS:

Fuel type Dry cordwood (16" recommended)
Recommended heating area-ft² () 500 - 2,100
Overall firebox volume-ft³ 2.4
EPA loading volume-ft³ 2.02
Maximum burn time () 8 h
Maximum heat output-dry cordwood (3) 75,000 BTU/h (22.0 kW)
Overall heat output rate < (3) (4) 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
Average overall efficiency (dry cordwood) (4) 69 % (HHV) (5) 74 % (LHV) (6)
Optimum overall efficiency (7) (8) 77 %
Optimum heat transfer efficiency (9) 75 %
Average particulate emissions rate (1) 1.54 g/h
Average CO (10) 89.4 g/h

(1) This appliance is officially tested and certified by an independent agency.

(2) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

(3) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(4) As measured per CSA B415.1-10 stack loss method.

(5) Higher Heating Value of the fuel.

(6) Lower Heating Value of the fuel.

(7) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(8) Optimum overall efficiency at a specific burn rate (LHV).

(9) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

(10) Carbon monoxyde.

GENERAL FEATURES:

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 20"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet) 12'
Baffle type High quality vermiculite
Approved for a mobile home installation No
Shipping Weight 392 lb (178 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 16" X 9 1/4"
Glass air-wash system Yes
Premium quality blower included (CFM) 144
Overall dimension (Height) 23 1/8"
Overall dimension (Width) 28 3/8"
Overall dimension (Depth) 26 3/8"
Door opening – dimension (Height) 9"
Door opening - dimension (Width) 17 1/2"
Firebox – dimension (Height) 11 7/8"
Firebox – dimension (Width) 21"
Firebox – dimension (Depth) 16 1/2"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Adjustable threaded legs Yes
Steel thickness – body 3/16"
Steel thickness – top 5/16"
Fireplace opening – minimum (Height) 23 3/8"
Fireplace opening – minimum (Width) 28 7/8"
Fireplace opening – minimum (Depth) 15 3/4"
USA standard (emissions) EPA Method 28
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S628
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
  Canada United-States
Clearance – top (measured from the platform on which the appliance is installed)** 84" 84"
Clearance – combustible side mantle to unit 9" 9"
Clearance – combustible top mantle to unit 27" 27"
Clearance – combustible side wall to unit 16" 16"
Clearance – minimum floor protection in front of the appliance 18" 16"
Clearance – from the top of the insert to the shelf 27" 27"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
