Drolet Eco-55 Pellet Stove With 4" Basement Venting Kit DP00070KVB

DroletSKU: DP00070KVB
filler

Price:
Sale price$3,149.00

Description

Drolet Eco-55 Pellet Stove With 4" Basement Venting Kit DP00070KVB

Heating area 500 - 2,000 Ft2
Size 25 1/8'' W X 29 1/2'' D X 32 5/8'' H
Hopper capacity 60 lb (27 kg)
Average particulate emissions rate (1) 0.96 g/h

FEATURES:

Easy to use and maintain, the Eco-55 pellet stove is ideal for heating spaces up to 2,000 ft². It features intuitive electronic control and easy to use thermostatic control. Cleaning is a breeze, with access to components that are removable without tools. Certified at only 0.96 g/h, the Eco-55 produces up to 39,260 BTU/h, and provides clean and efficient heating.

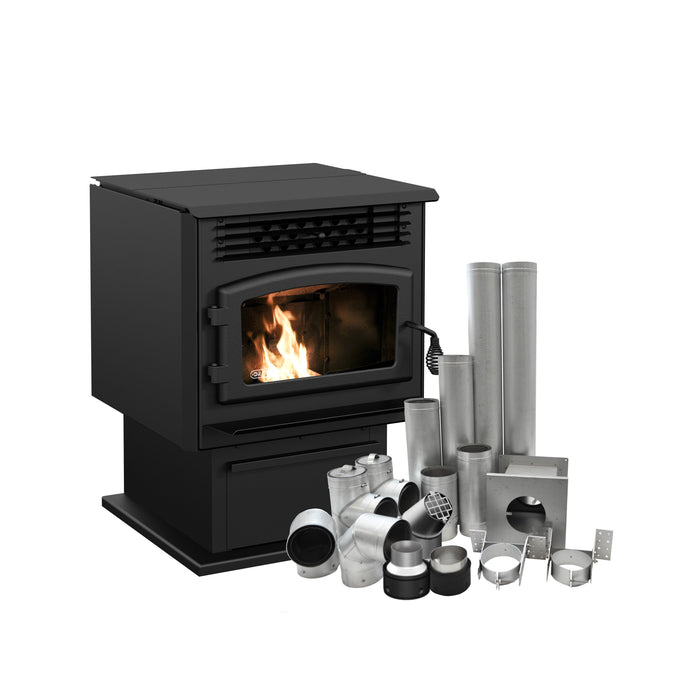

Included: 4'' Vortex pellet vent basement kit (one stove adapter, one 3"Ø to 4"Ø increaser stove adapter, two tees with cap, four pipe lengths: 12", 18", 24" and 36", one slip (adjustable section) - 9"L, two 90° elbows, one wall pass-thru, two wall supports and one jet cap), blower, ceramic glass, ash lip

  • Burn time up to 51 hours (up to 120 hours with the optional hopper extension)
  • Hopper capacity of 60 lb
  • Top-feed burner
  • EPA 2020 certified
  • Proudly made in Canada
  • Limited lifetime warranty
  • Certified for mobile home and alcove installation

Options: wall thermostat, fresh air intake kit, hopper extension, stand alone auxiliary discharge tank, storage tank with pneumatic self-feeding pellet system, storage tank extension

Eco-55 pellet stove installation manual (EN/FR)
(PDF - 8.5 Mo)

  Eco-55 pellet stove operation manual (EN/FR)
(PDF - 9.0 Mo)

Eco-55 pellet stove dimensions

How to replace the ignitor
(PDF - 1.5 Mo)

How to replace F-160 thermodisc
(PDF - 0.5 Mo)

How to replace the F-250 thermodisc
(PDF - 1.0 Mo)

How to replace the exhaust blower
(PDF - 1.4 Mo)

How to replace the combustion blower
(PDF - 1.2 Mo)

How to replace the convection blower
(PDF - 0.8 Mo)

How to replace the auger motor
(PDF - 1.0 Mo)

How to access the fuses
(PDF - 1.5 Mo)

How to test a component
(PDF - 1.1 Mo)

Components location
(PDF - 0.3 Mo)

Government incentives may apply to this product.
LEARN MORE

*Any installation must be done according to the data and drawings detailed in the owner’s manual.

SPECIFICATIONS:

Fuel type Pellet (Premium grade or better) (3)
Recommended heating area-ft² () 500 - 2,000
Hopper capacity 60 lb (27 kg)
Maximum burn time () 51 h
Maximum heat input rate (4) 39,260 BTU/h (11.5 kW)
Overall heat output rate < (5) 6,648 BTU/h (1.95 kW) to 28,540 BTU/h (8.36 kW)
Average overall efficiency (6) 70.3 % (HHV) (7) 75.8 % (LHV) (8)
Optimum efficiency (9) (10) 78.4%
Optimum heat transfer efficiency (11) 73 %
Burn rate 1.2 - 4.7 lb/h
Average particulate emissions rate (1) 0.96 g/h
Average CO (12) 7.6 g/h
Average electrical power consumption-ignition cycle (13) 3.02A (360W)
Average electrical power consumption for continuous operation (13) 1.3 - 2.5A (51 - 140W)

(1) This appliance is officially tested and certified by an independent agency.

(2) Values are as measured per CSA B415.1-10, except for the recommended heating area, hopper capacity, maximum burn time and maximum heat input rate. Results may vary depending on pellet quality, density, length, and diameter.

(3) Grades of pellet fuel are determined by organizations such as Pellet Fuels Institute (PFI), ENplus and CANplus.

(4) Based on the maximum burn-rate and a dry energy value of pellet at 8,600 BTU/lb.

(5) As measured per CSA B415.1-10 stack loss method.

(6) Efficiency based on radiated and delivered heat when allowing cycling from high to low burn to simulate thermostat demand. LHV % is based on manufacturer’s estimation.

(7) Higher Heating Value of the fuel.

(8) Lower Heating Value of the fuel.

(9) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(10) Optimum overall efficiency at a specific burn rate (LHV).

(11) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

(12) Carbon monoxyde.

(13) Unless stated otherwise, measures were taken directly at the main power source and include all electrical components present in the appliance.

General Features:

Combustion technology Top-feed
High-efficiency certified appliance Yes, EPA 2020 approved
Electronic igniter Yes
Flue outlet diameter 3"
Type of chimney ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Baffle type Stainless steel
Approved for an alcove installation Yes
Approved for a mobile home installation Yes, with fresh air intake
Shipping Weight 277 lb (126kg)
Door type Single, glass with cast iron frame
Safe and removable handle Yes
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 15 3/4" X 8 1/8"
Glass air-wash system Yes
Premium quality blower included (CFM) 176
Noise level at 6 feet 47 dBa (+/- 3 dBa) - 60 dBa (+/- 3 dBa)
Overall dimension (Height) 32 5/8''
Overall dimension (Width) 25 1/8''
Overall dimension (Depth) 29 1/2''
Voltage and frequency 120 VAC / 60 Hz
USA standard (emissions) ASTM E2779
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, ASTM E1509
Canadian standard (safety) ULC S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
  Canada United-States
Clearance – back wall 3" 3"
Clearance - corner 3" 3"
Clearance – side wall 6" 6"
Clearance – top (measured from the platform on which the appliance is installed)** 48" 48"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
