Drolet Heritage With Blower - DB03190

Save $100.00
DroletSKU: DB03190
filler

Price:
Sale price$1,549.00 Regular price$1,649.00

Description

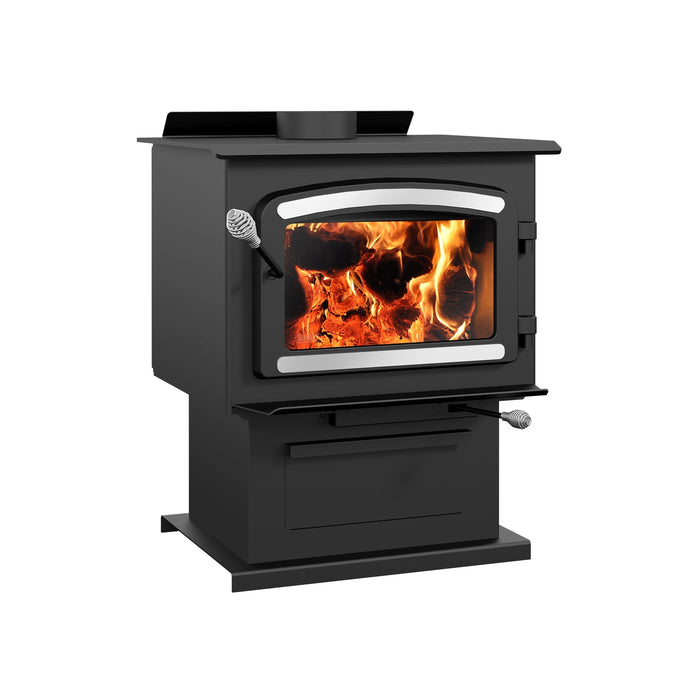

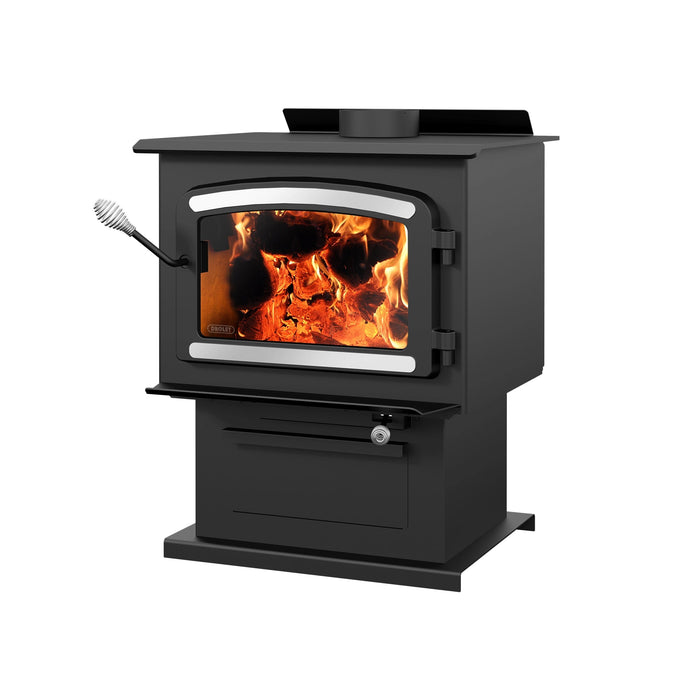

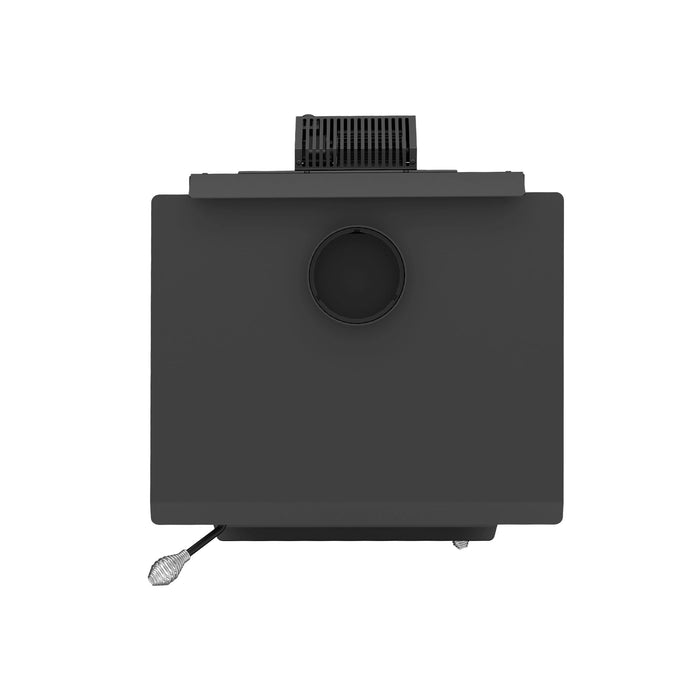

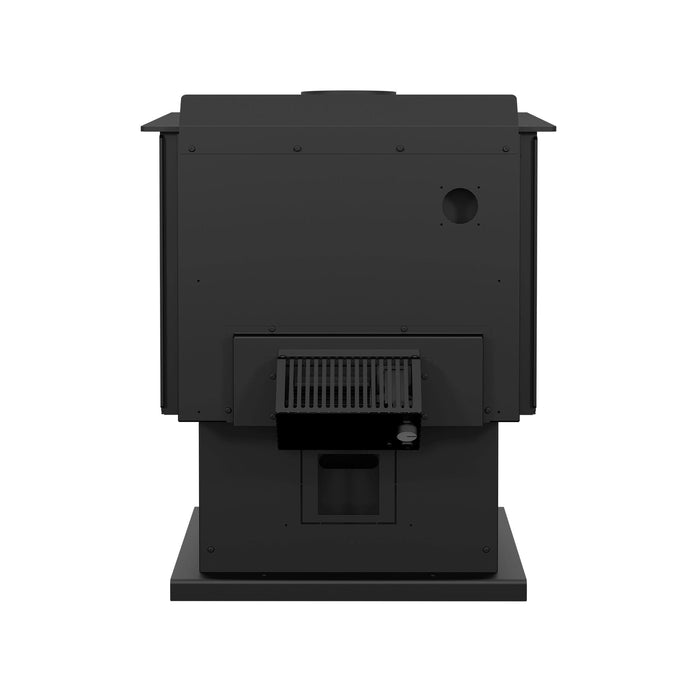

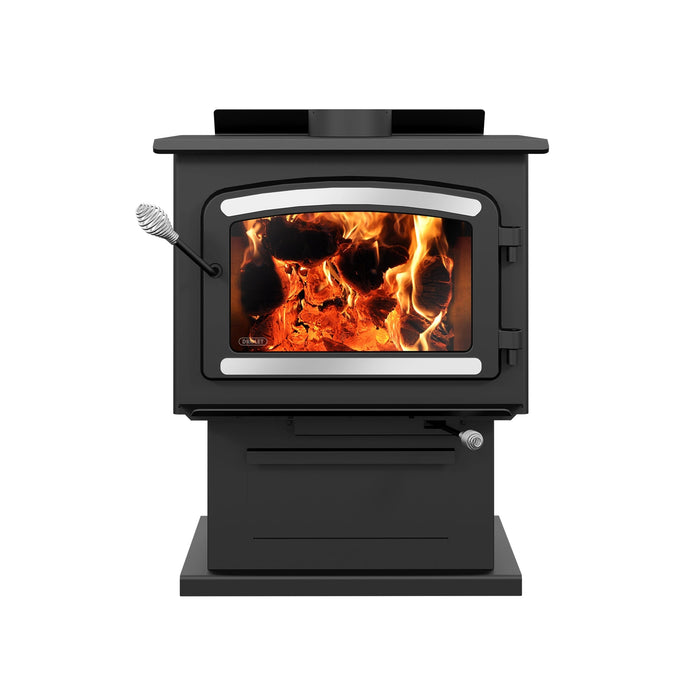

Drolet Heritage With Blower - DB03190
_________________________________

This unit is capable of heating an area of ​​up to 2 100 ft², the Heritage offers a maximum heat output of 75,000 BTU/h.

Robust and powerful, this non-catalytic unit goes beyond environmental standards with its low particle emission rate of 2.3 g/h. Among the largest stoves available on the market, the Heritage is equipped with a large glass surface to fully enjoy the fire.

**Included:**pedestal with ash drawer, blower, air deflector, ceramic glass, ash lip, air damper

Features:

▪ Up to 8 hours burn time
▪ Up to 20" logs
▪ 2.4 ft³ firebox
▪ Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
▪ EPA certified
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ Certified for mobile home and alcove installation

Specifications:

Appliance Performance:

Fuel type Dry cordwood (16" recommended)
Recommended heating area 500 - 2,100 ft²
Overall firebox volume 2.4 ft³
EPA loading volume 1.95 ft³
Maximum burn time 8 h
Maximum heat output-dry cordwood 75,000 BTU/h (22 kW)
Minimum overall heat output rate 14,200 BTU/h (4.16 kW)
Maximum overall heat output rate 44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV) 72%
Average overall efficiency-dry cordwood (LHV) 77 %
Optimum efficiency 79 %
Optimum heat transfer efficiency 76 %
Average particulate emission rate 2.3 g/h
Average CO 69 g/h

General Features:

Alcove installation approved Yes Glass surface - W x H 16" x 9 1/4"
Mobile home approved Yes, with fresh air intake Steel thickness-body 3/16"
Certified according to applicable standards By an accredited laboratory (CAN/USA) Steel thickness-top 5/16"
Overall dimension (Width) 26" Firebox size (Width) 21"
Overall dimension (Height) 32 3/4" Firebox size (Height) 11 3/4"
Overall dimension (Depth) 32" Firebox size (Depth) 16 3/4"
Premium quality blower included (CFM) 100 CFM included Log positioning Loading over width
Combustion technology Non-catalytic Maximum log length 20"
Stainless-steel secondary-air system Yes Firebox lined with refractory bricks Yes
Flue outlet diameter 6" Baffle type High quality vermiculite
Distance-center of the flue outlet to back unit 11 1/2" High-efficiency certified appliance Yes, EPA 2020 approved
Distance-center of the flue outlet to side unit 13" Canadian Standard (emissions) CSA B415.1-10
Recommended chimney diameter 6" USA Standard (emissions) EPA
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F) Canadian Standard (safety) ULC S627
Minimum chimney height 12' USA Standard (safety) UL 1482, UL 737
Door type Single, glass with cast iron frame Warranty Limited lifetime
Door opening size (Width) 17 1/2" Shipping weight 367 lb (166 kg)
Door opening size (Height) 9" Approved as add-on to an existing furnace No
Glass type Ceramic glass Dimensions 26"L X 32"P X 32 3/4"H

Clearance:

CLEARANCE SINGLE WALL PIPE DOUBLE WALL PIPE
Back wall 11" 6"
Corner 12" 12"
Side wall 22" 22"
Base of the unit to ceiling 84" 84"


IMPORTANT: Any installation must be done according to the data and drawings detailed in the owner’s manual....Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Wood Stove Owner's Manual | Safety Notifications & General Information

Appliance Dimensions

Installation & Operation Requirements
