Drolet Deco II Wood Stove - DB03205

DroletSKU: DB03205
filler

Price:
Sale price$1,299.00

Description

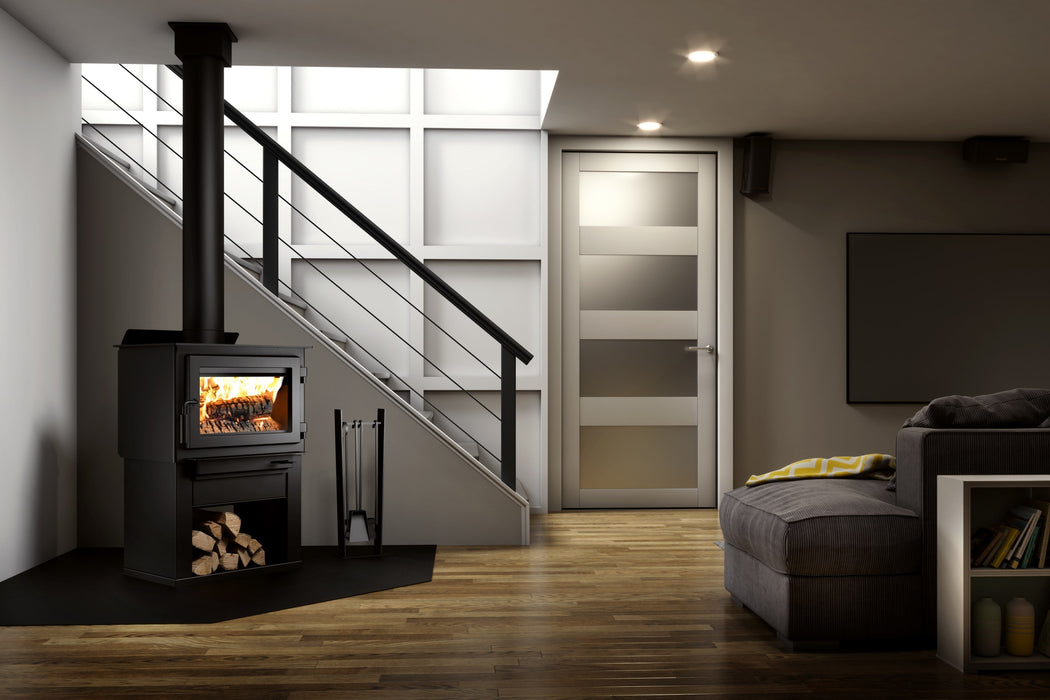

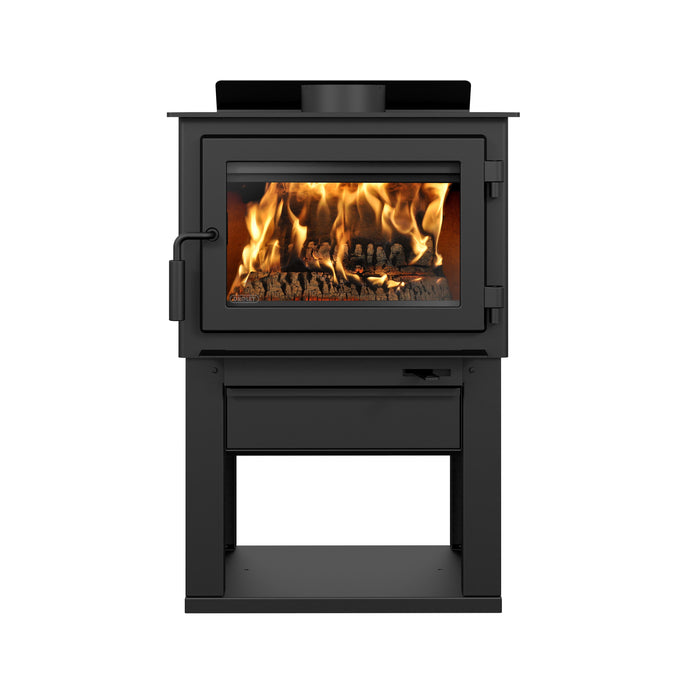

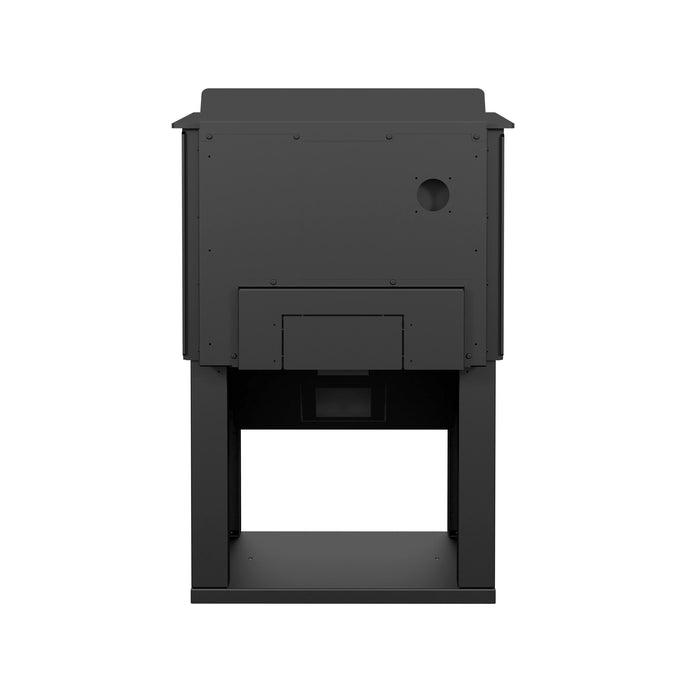

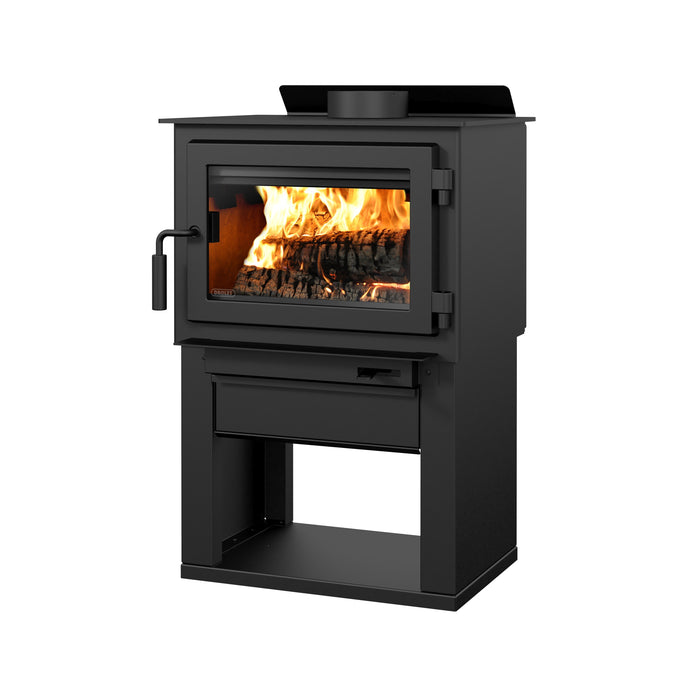

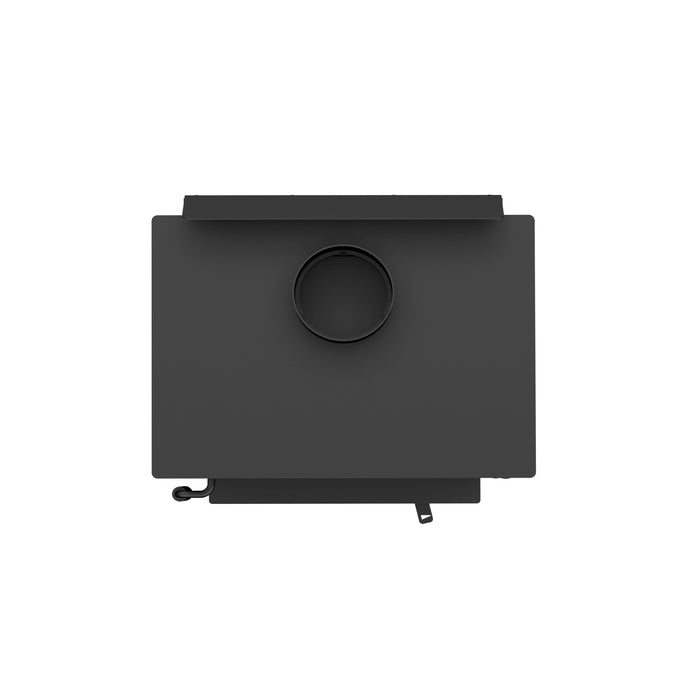

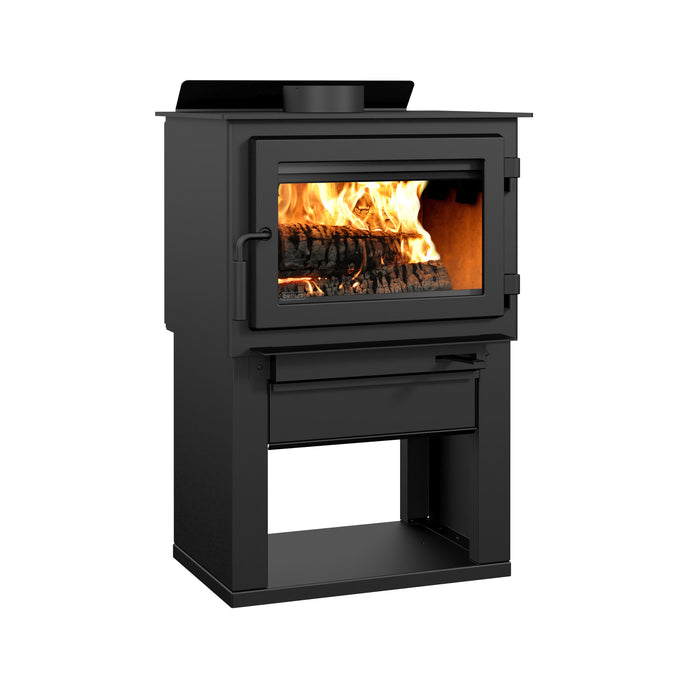

Drolet Deco II Wood Stove - DB03205

leek version of the traditional wood stove, the Deco II can heat up to 1,800 ft² with 65,000 BTU/h of maximum power. EPA 2020 certified at 1.26 g/h, this non-catalytic wood stove stands out with its modern design, its higher-than-average height and its storage space under the appliance.

Included: pedestal with ash drawer, top air deflector, ceramic glass, ash lip, air damper

FEATURES:

Heating area 500 - 1,800 Ft2
Size 23 7/8" W X 23" D X 36 5/8" H
Maximum log length 18"
Average particulate emission rate
1.26 g/h
  • Up to 6 hours burn time
  • Up to 18'' logs
  • 1.9 ft³ firebox
  • Heavy duty 5/16'' steel top
  • EPA certified
  • Proudly made in Canada
  • Limited lifetime warranty
  • Certified for mobile home and alcove installation

 SPECIFICATIONS:

General Features:

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 18"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 12'
Baffle type High quality vermiculite
Approved for a mobile home installation Yes, with fresh air intake
Shipping Weight 321 lb (146 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 15 3/4" X 9 3/4"
Glass air-wash system Yes
Overall dimension (Height) 36 5/8"
Overall dimension (Width) 23 7/8"
Overall dimension (Depth) 23"
Door opening – dimension (Height) 8"
Door opening - dimension (Width) 17 1/4"
Firebox – dimension (Height) 11 7/8"
Firebox – dimension (Width) 19 5/8"
Firebox – dimension (Depth) 13 1/2"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Model Pedestal
Steel thickness – body 3/16"
Steel thickness – top 5/16"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime



Appliance Performance:
Fuel type Dry cordwood (16" recommended)
Recommended heating area(9) 500 - 1,800 ft²
Overall firebox volume 1.9 ft³
EPA loading volume 1.44 ft³
Maximum burn time(9) 6 h
Maximum heat output-dry cordwood(4) 65,000 BTU/h (19 kW)
Minimum overall heat output rate(4) (5) 15,650 BTU/h (4.6 kW)
Maximum overall heat output rate(4) (5) 23,300 BTU/h (6.83 kW)
Average overall efficiency-dry cordwood (HHV)(5) (6) 70 %
Average overall efficiency-dry cordwood (LHV)(5) (7) 75 %
Optimum efficiency(1) (2) 78 %
Optimum heat transfer efficiency(8) 74 %
Average particulate emission rate(3) 1.26 g/h
Average CO(10) 58 g/h
Size Medium
Maximum log length 18"
Shipping weight 321 lb (146 kg)
Overall dimension (Width) 23 7/8"
Overall dimension (Height) 36 5/8"
Overall dimension (Depth) 23"
Warranty Limited lifetime
Alcove installation approved Yes
Mobile home approved Yes, with fresh air intake
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM) Optional
Combustion technology Non-catalytic

(1) This appliance is officially tested and certified by an independent agency.

(2) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

(3) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(4) As measured per CSA B415.1-10 stack loss method.

(5) Higher Heating Value of the fuel.

(6) Lower Heating Value of the fuel.

(7) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(8) Optimum overall efficiency at a specific burn rate (LHV).

(9) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

(10) Carbon monoxyde.

Clearances:

  United-States
  Single wall pipe Double wall pipe
Clearance – back wall 13" 7 1/2"
Clearance - corner 12" 12"
Clearance – side wall 15" 15"
Clearance – top (measured from the platform on which the appliance is installed)** 84" 84"
