Drolet Deco Nano Wood Stove - DB03215

DroletSKU: DB03215
filler

Price:
Sale price$999.00

Description

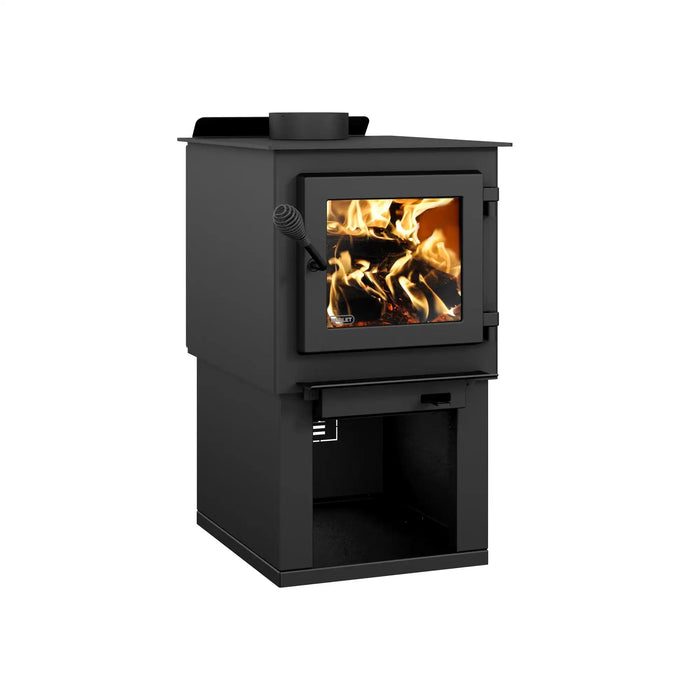

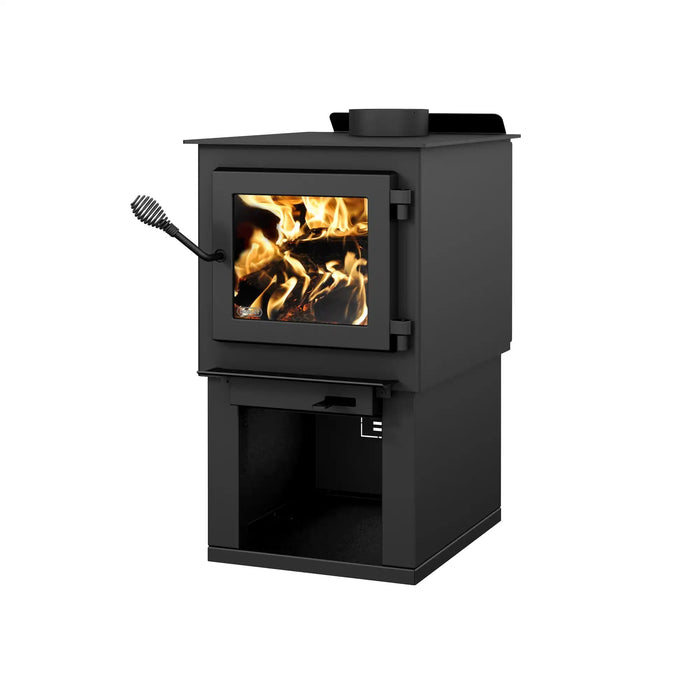

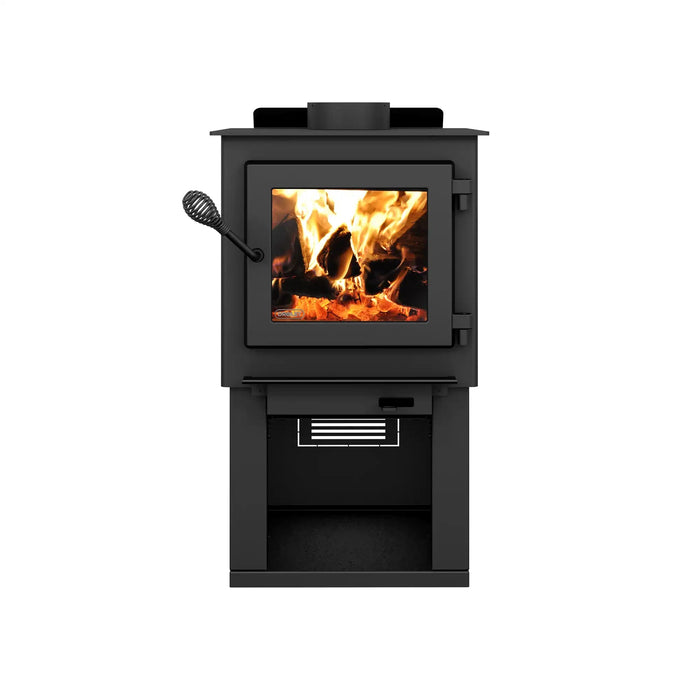

Drolet Deco Nano Wood Stove - DB03215

The Deco Nano can heat up to 1,200 ft² with 45,000 BTU/h of maximum power. EPA certified at 1.8 g/h, this non-catalytic wood stove stands out with its modern design, its higher-than-average height and its practical storage space under the appliance. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus able to empty them less frequently.

Included: pedestal with log storage, top air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper, stainless steel heat shield

FEATURES:

Heating area 250 - 1,200 ft²
Size
18 1/2" W X 29 1/8" D X 32 1/2" H
Maximum log length 17"
Average particulate emissions rate  1.8 g/h
  • Up to 5 hours burn time
  • Up to 17" logs
  • 1.55 ft³ firebox
  • EPA certified
  • Proudly made in Canada
  • Limited lifetime warranty
  • Certified for mobile home and alcove installation

SPECIFICATIONS:

General Features:

Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Distance-center of the flue outlet to back unit 6 5/8"
Distance-center of the flue outlet to side unit 9 1/4"
Recommended chimney diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height 12'
Door type Single, glass with cast iron frame
Door opening size (Width) 12"
Door opening size (Height) 7 5/8"
Glass type Ceramic glass
Glass surface - W x H 10 1/4" x 8 3/4"
Steel thickness-body 3/16"
Steel thickness-top 1/4"
Firebox size (Width) 14 1/4"
Firebox size (Height) 11 3/4"
Firebox size (Depth) 19 1/8"
Log positioning Loading over depth
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482, UL 737



Appliance Performance:

Fuel type Dry cordwood (16" recommended)
Recommended heating area(9) 250 - 1,200 ft²
Overall firebox volume 1.8 ft³
EPA loading volume 1.55 ft³
Maximum burn time(9) 5 h
Maximum heat output-dry cordwood(4) 45,000 BTU/h (13.19 kW)
Minimum overall heat output rate(4) (5) 12,124 BTU/h (3.55 kW)
Maximum overall heat output rate(4) (5) 26,700 BTU/h (7.83 kW)
Average overall efficiency-dry cordwood (HHV)(5) (6) 74 %
Average overall efficiency-dry cordwood (LHV)(5) (7) 79 %
Optimum efficiency(1) (2) 80 %
Optimum heat transfer efficiency(8) 79 %
Average particulate emission rate(3) 1.8 g/h
Average CO(10) 74 g/h
Size Small
Maximum log length 17"
Shipping weight 281 lb (128 kg)
Overall dimension (Width) 18 1/2"
Overall dimension (Height) 32 1/2"
Overall dimension (Depth) 29 1/8"
Warranty Limited lifetime
Alcove installation approved Yes
Mobile home approved Yes, with fresh air intake
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM) Optional
Combustion technology Non-catalytic



(1). Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(2). Optimum overall efficiency at a specific burn rate (LHV).

(3). This appliance is officially tested and certified by an independent agency.

(4). The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(5). As measured per CSA B415.1-10 stack loss method.

(6). Higher Heating Value of the fuel.

(7). Lower Heating Value of the fuel.

(8). The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

(9). Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

(10). Carbon monoxyde.

Clearances:

  United-States
  Single wall pipe Double wall pipe
Clearance – back wall 18" 18"
Clearance - corner 11" 7"
Clearance – side wall 12" 6"
Clearance – top (measured from the platform on which the appliance is installed)** 84" 84"
