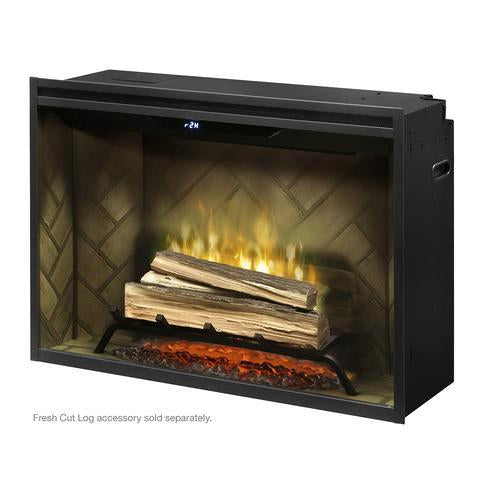

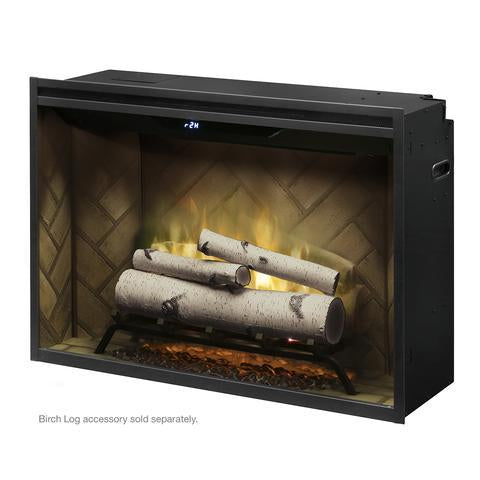

Dimplex 36" Revillusion Built-In Electric Firebox - RBF36

DimplexSKU: RBF36

Sale price$1,979.99


Dimplex 36" Revillusion Built-In Electric Firebox - RBF36

Revillusion® is a  new way of experiencing fireplaces and enhancing the standard for electric fireplaces. A clear view through the lifelike flames, to the full brick interior, captures the charm of a wood-burning fireplace. Enjoy the look of a fireplace cut straight from the pages of a magazine by choosing Revillusion®; clearly a better fireplace.



  • Revillusion® Flame Technology:  Flames are larger, brighter, and more random, appearing from within the logs.
  • Mirage™ Flame Panel:  The partially frosted acrylic panel is clearly better than a mirror, showing only dazzling flames and no reflections.
  • ThruView™ Full-depth Design:  See clear through the flames to the back of a masonry fireplace for a more authentic experience.
  • Mood Lighting:  Customize the firebox glow with a choice of warm hues, plus midnight mode.
  • Color Enhancement:  Adjust the flame base color to red or blue.
  • Realogs® Plus:  A full grate of life-size hardwood-cast logs, tiered for greater depth.
  • Full Brick-surround Firebox:  More authentic day or night; 270-degree herringbone brick with natural soot markings.
  • Brightness and Flicker:  Adjust light level to suit the room and choose flicker effect for enhanced firelight.
  • Ambient Light Sensor:  Automatically adjusts firebox light to suit the room day to night.
  • Quick and Easy Installation: Simply frame, wire and finish – no venting, gas lines, or safety screens.
  • Primary Heat:  Option to use 240 volt supply for up to 8,800 BTU - use as part of the primary heating plan; heater also operates without flame and can be deactivated.
  • Direct-wire:  Designed to be direct-wired to a 120, 208 or 240-volt circuit for a seamless look (optional plug kit available).
  • All-season Flames:  Enjoy the unique charm of a fireplace 365 days a year using the flames without the heat.
  • Low Carbon Footprint:  The most sustainable fireplace option; no emissions and 100% efficient.

      Product Specifications:

        • Finish:  Black
        • Fuel Bed:  Logs
        • Installation:  Wall / Fireplace
        • Mounting Options:  Fully Recessed
        • Surround Material:  Brick
        • Dimensions:  37.125" W x 26.625" H x 12.125" D
        • Framing Dimensions:  36 5/8" W X 26 3/16" H X 12 1/2" D
        • Weight:  74.9 lbs
        • Warranty:  2-Year Limited
        • Volts:  120 /208 /240
        • Amps:  10.8/ 9.4/ 10.7
        • Watts:  1440/ 1975/ 2575
        • Wiring:  Direct-Wire or Plug Kit
        • BTU Output:  4400/ 6745/ 8794
        • Supplemental Heating Area:  800 sq. ft.
        • Heat Location:  Front vent heater at top of unit
        • Vent Type:  Ventless
        • Remote Control Options:  Multi-function
        • With Blower & Adjustable Thermostat
        • Certified to Meet UL & CSA Standards
