Englander 25-CAB80S - ESW0022

Save $200.00
EnglanderSKU: ESW0022
filler

Price:
Sale price$1,399.00 Regular price$1,599.00

Description

Englander 25-CAB80S - ESW0022

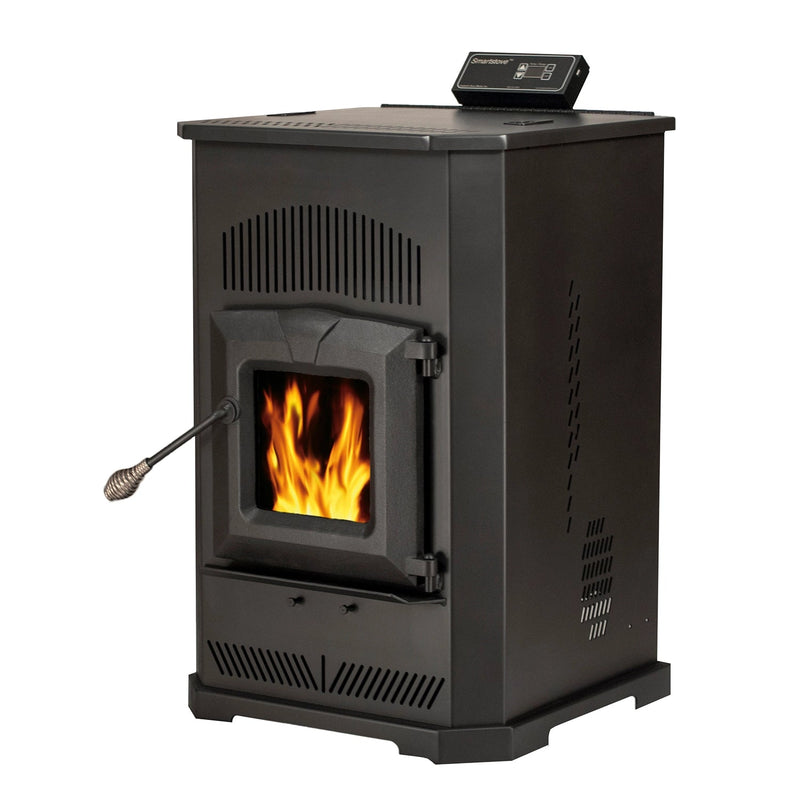

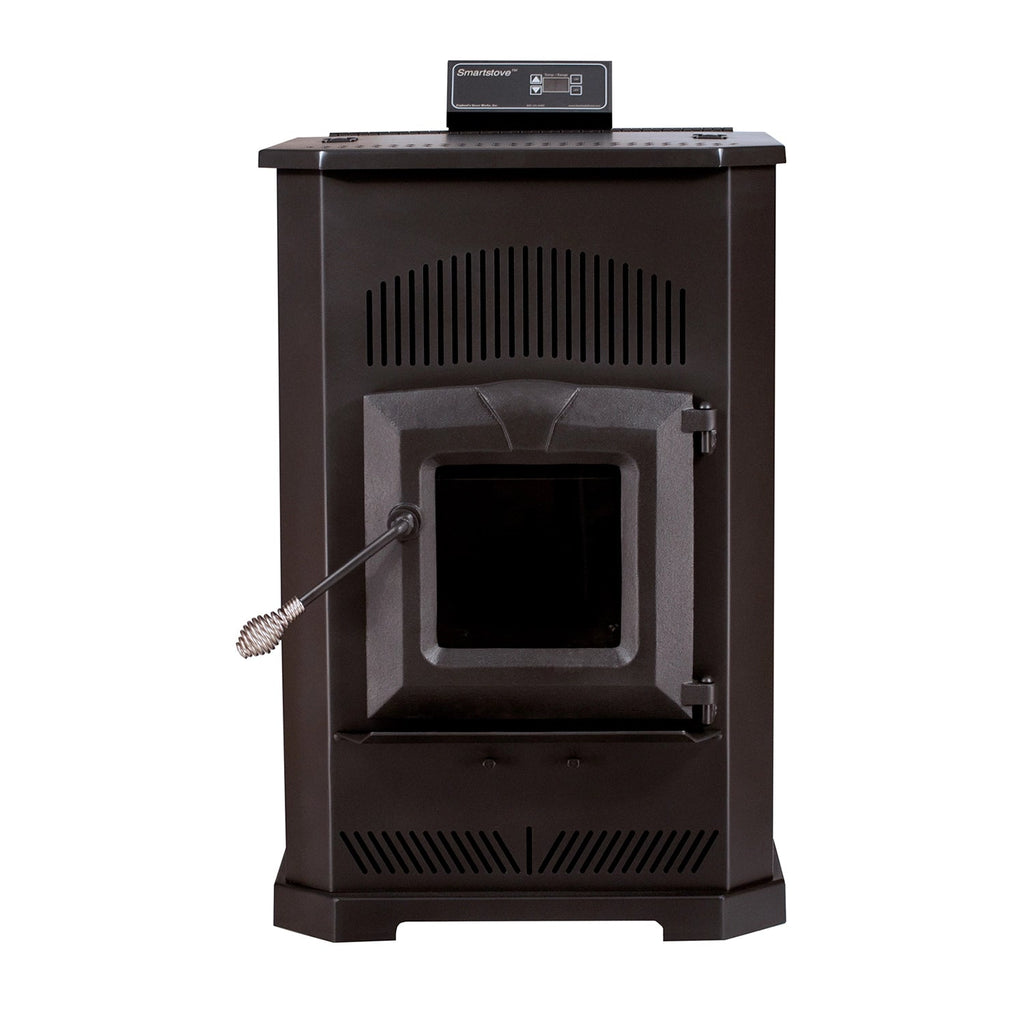

Discover the epitome of both style and functionality with the Englander 25-CAB80S Cabinet-Style Pellet Stove, a testament to innovation and warmth in your home.

This cabinet-style pellet stove is built with both form and function in mind.

It is powered by an auto-start igniter and our proven, user-friendly control board for quick and easy operation – just press ON and choose your desired heat setting.

The auto-ignition system ensures that the stove will safely light, and the control system takes over to ensure a safe, efficient burn. A large, 80-lb. capacity hopper holds enough pellet fuel for overnight burns (as well as reduced loading on your part), and the large viewing glass with air wash system gives a great view of the fire.

This stove heats up to 2,000 ft², and a fresh air hook-up kit is included at no charge. A stylish nickel cool-touch handle accents the stately, beveled cast iron door. The stove is mobile home approved.

• Made in USA

• Heats up to 2,000 ft²

• Hopper holds 80 lb of wood pellets

• Up to 36h burn time per filling

• Mobile home approved

• Outside air kit included

SPECIFICATIONS:

Appliance Performance

Fuel Type Premium Grade Wood Pellets
Recommended heating area 500 - 2,000 ft²
Hopper capacity 80 lb
Maximum burn time 36 hr
Maximum heat input rate 31,820 BTU/h (9.33 kW)
Minimum overall heat output rate 11,641 BTU/h (3.41 kW)
Maximum overall heat output rate 20,959 BTU/h (6.15 kW)
Minimum average overall efficiency (HHV) 61.10%
Maximum average overall efficiency (LHV) 68.30%
Optimum efficiency 64.10%
Optimum heat transfer efficiency 61.10%
Burn Rate 3.70 lb/h
Average particulate emission rate 1.13 g/h
Average CO 1.74 g/h
Average electrical power consumption for ignition cycle 5.65A (729 W)
Average electrical power consumption for continuous operation 3.15A (479 W)


General features

Mobile home approved Yes, with fresh air intake
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM) 250 CFM included
Combustion technology Bottom-feed
Baffle type Mild steel
Recommended chimney diameter 3"-4"
Type of chimney ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Overall dimension (Width) 23 1/4"
Overall dimension (Height) 35 1/2"
Overall dimension (Depth) 27 1/2"
Voltage and frequency 120 VAC / 60 Hz
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface - W x H 8" x 8"
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA, ASTM E2779
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482, ASTM E1509
Warranty 5 year Limited
Shipping weight 330 lb



Clearances

Back wall 0"
Corner 5"
Side wall 7"
Base of the unit to ceiling 84



Installation and User's Manual

Appliance Dimensions
