Description
25-CAB80 Pellet Stove by Englander
This cabinet-style pellet stove is built with both form and function in mind.
It is powered by an auto-start igniter and our proven, user-friendly control board for quick and easy operation – just press ON and choose your desired heat setting.
The auto-ignition system ensures that the stove will safely light, and the control system takes over to ensure a safe, efficient burn. A large, 80-lb. capacity hopper holds enough pellet fuel for overnight burns (as well as reduced loading on your part), and the large viewing glass with air wash system gives a great view of the fire.
This stove heats up to 2,000 sq. ft., and a fresh air hook-up kit is included at no charge. A stylish nickel cool-touch handle accents the stately, beveled cast iron door. The stove is mobile home approved.
- Heats up to 2,000 sq. ft. to ensure a warm, cozy living space
- EPA latest certification means High Efficiency and Low Emissions – you’ll use less fuel for the same amount of heat as older, non-certified stoves
- User-friendly digital control board controls heat output and blower speed for steady, accurate heating
- Outside air hook-up provides fresh air for excellent fuel combustion
- Unique double cast auger feed system for consistent, dependable fuel flow
Features
- Made in USA
- Heats up to 2,000 sq. ft.
- Hopper holds 80 lb of wood pellets
- Up to 55 hrs. burn time per filling
- EPA latest certification means High Efficiency and Low Emissions
- Mobile Home Approved
Included Accessories

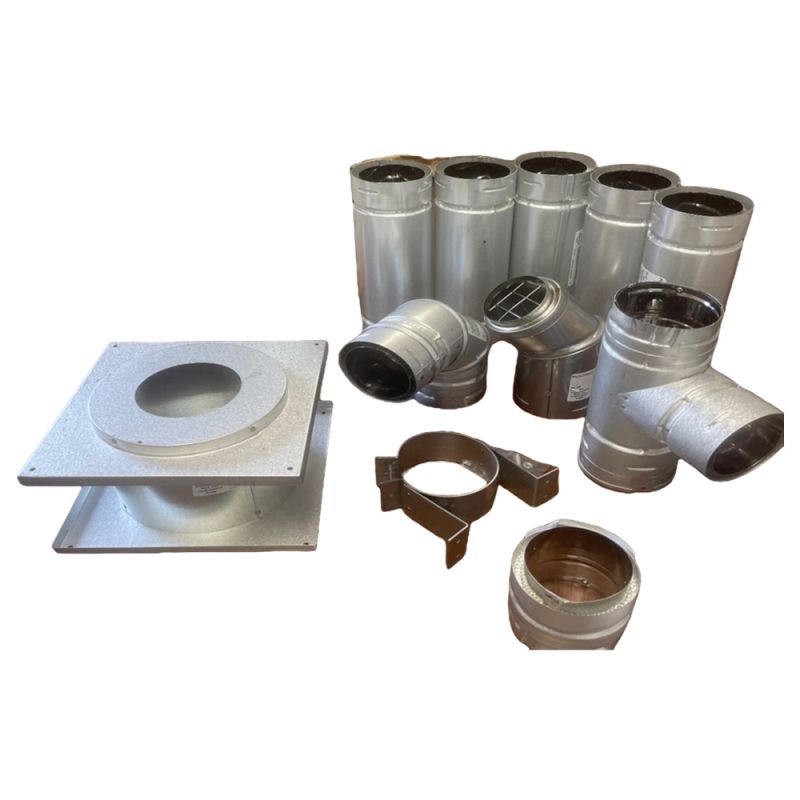

- Outside Air Kit: Included
Specifications
| Fuel type | Premium Grade Wood Pellets |
| Recommended heating area | Up to 2,000 ft² |
| Hopper capacity | 80 lb |
| Maximum burn time | 36 h |
| Maximum heat input rate | 31,820 BTU/h (9.33 kW) |
| Minimum overall heat output rate | 11,641 BTU/h (3.41 kW) |
| Maximum overall heat output rate | 20,959 BTU/h (6.15 kW) |
| Minimum average overall efficiency (HHV) | 61.10% |
| Maximum average overall efficiency (LHV) | 68.30% |
| Optimum efficiency | 64.10% |
| Optimum heat transfer efficiency | 61.10% |
| Burn rate | 3.70 lb/h |
| Average particulate emission rate | 1.13 g/h |
| Average CO | 1.74 g/h |
| Average electrical power consumption for ignition cycle | 5.65A (729 W) |
| Average electrical power consumption for continuous operation | 3.15A (479 W) |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Premium quality blower included (CFM) | 250 CFM included |
| Combustion technology | Bottom-feed |
| Baffle type | Mild steel |
| Flue outlet diameter | 3" |
| Recommended chimney diameter | 3"-4" |
| Type of chimney | ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L) |

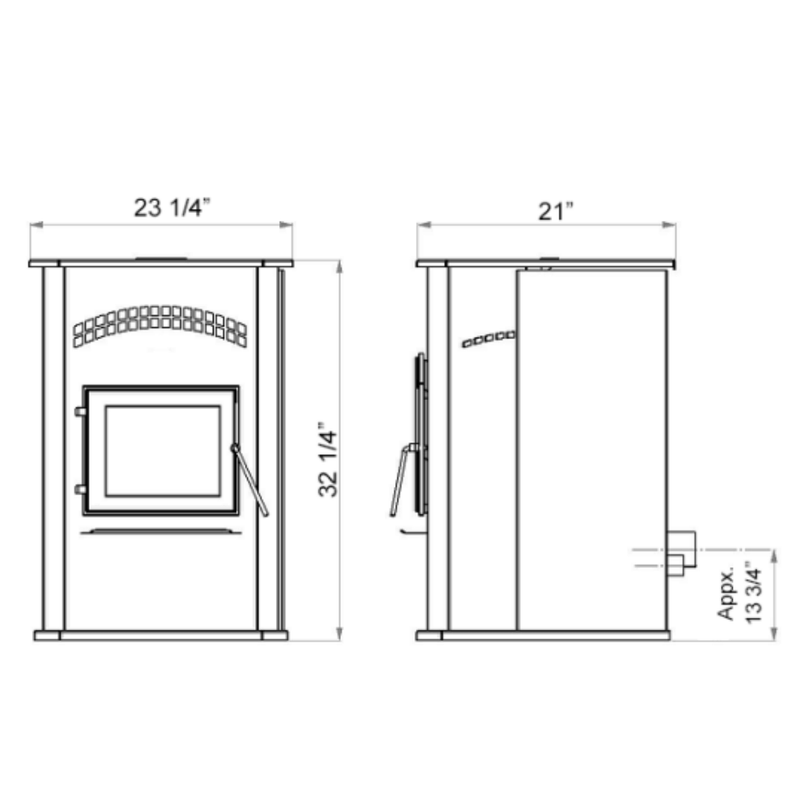

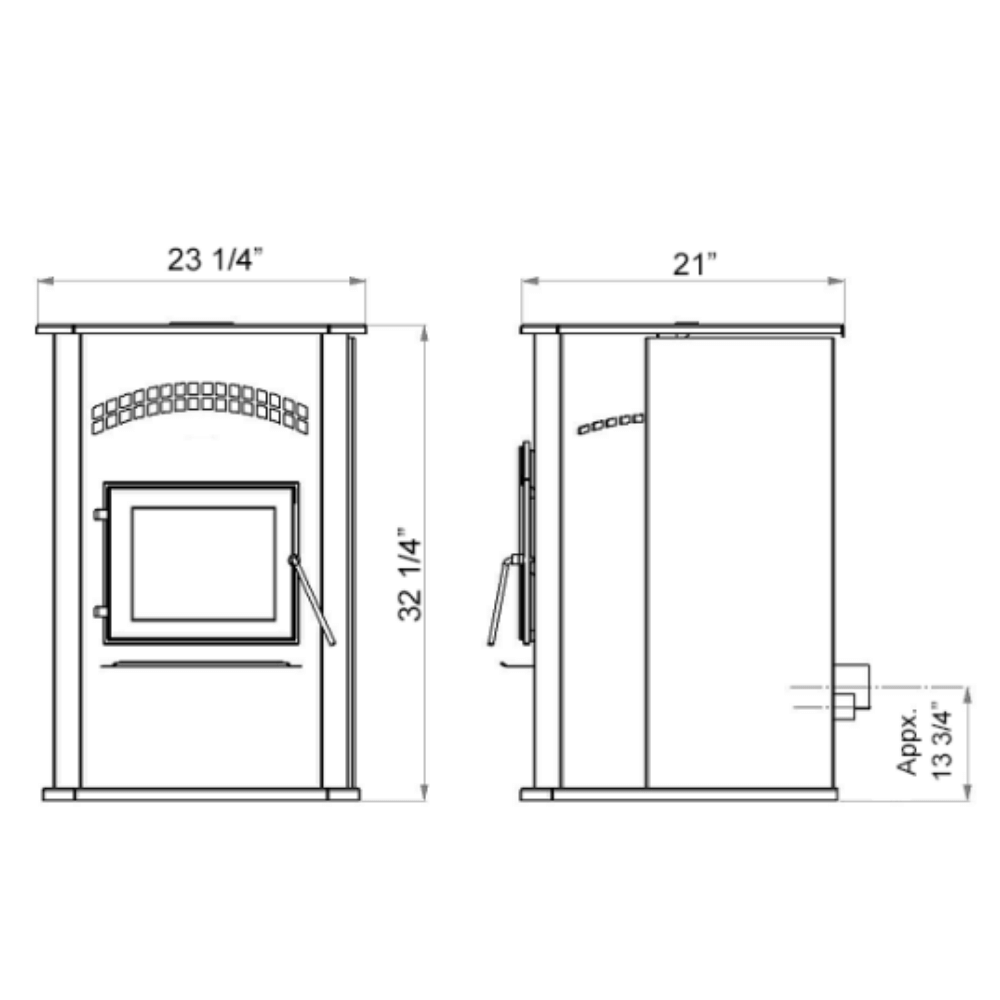

| Overall dimension (Width) | 23 1/4" |
| Overall dimension (Height) | 32 1/4" |
| Overall dimension (Depth) | 21" |
| Voltage and frequency | 120 VAC / 60 Hz |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface - W x H | 9 1/8" x 9 1/8" |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA, ASTM E2779 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, ASTM E1509 |
| Warranty | 5 year Limited |
| Shipping weight | 330 lb |
Clearance to Combustibles*
Applies to 84" ceiling installation only.
See user manual for other installation requirements.
| Canada | United States | |
| Clearance - Back wall | 0" | 0" |
| Clearance - Side wall | 7" | 7" |
| Clearance - Corner | 5" |
5" |
| Clearance - Base of the unit to ceiling** | 84" | 84" |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
Warranty
Limited 5-year warranty (see owner's manual)
Installation Guide
