Drolet Cape Town 1800 Cast Iron Wood Stove DB04900

DroletSKU: DB04900
filler

Price:
Sale price$3,499.00

Description

Drolet Cape Town 1800 Cast Iron Wood Stove DB04900

Heating area 500 - 2,000 Ft2
Size 30 3/4" W X 22 5/8" D X 32 5/8" H
Maximum log length 21"
Average particulate emissions rate (1) 1.8 g/h


FEATURES:

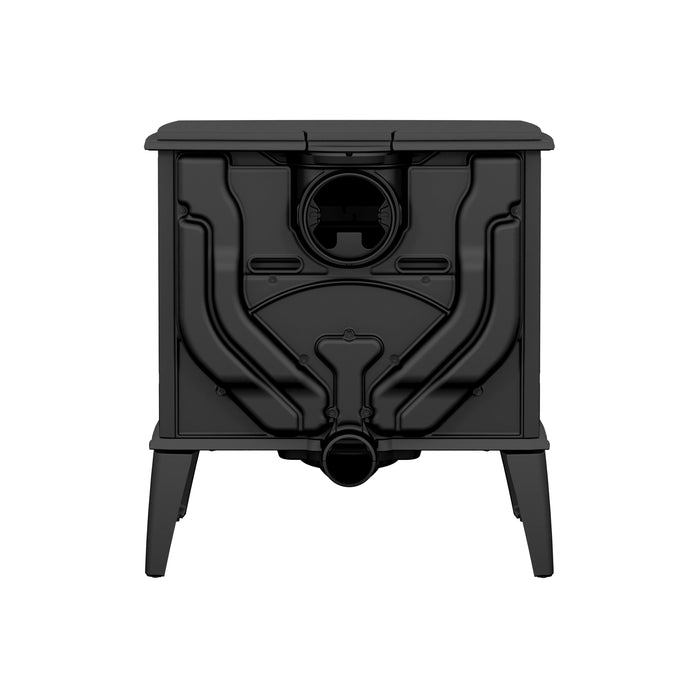

Entirely made of cast iron, the Cape Town 1800 is ideal for heating up to 2000 sq² with its 75,000 BTU/h of maximum power. Certified at 1.8 g/h, this non-catalytic unit is the only Drolet model to offer a flue outlet at  the back and on the top of the stove. The Cape Town 1800 has a large viewing area as well as a full width andiron to hold logs during loading. Its classic design and distinguished cast iron finish give it all its charm.

Included: ash drawer, ceramic glass, ash lip, broad-spectrum air damper

  • Up to 8 hours burn time
  • 21’’ logs
  • 2 ft³ firebox volume
  • EPA certified
  • Made in Belgium
  • Limited lifetime warranty
  • Certified for mobile home and alcove installation

Options: heat shield

Cape Town stove install & owner's manual
(PDF - 7.9 Mo)

Cape Town stove dimensions
(PDF - 0.4 Mo)

Government incentives may apply to this product.
LEARN MORE

SPECIFICATIONS:

Fuel type Dry cordwood (16" recommended)
Recommended heating area-ft² () 500 - 2,000
Overall firebox volume-ft³ 2.0
EPA loading volume-ft³ 1.55
Maximum burn time () 8 h
Maximum heat output-dry cordwood (3) 75,000 BTU/h (22 kW)
Overall heat output rate < (3) (4) 13,784 BTU/h (4.04 kW) to 57,684 BTU/h (16.91 kW)
Average overall efficiency (dry cordwood) (4) 71% (HHV) (5) 76% (LHV) (6)
Optimum overall efficiency (7) (8) 78%
Optimum heat transfer efficiency (9) 77%
Average particulate emissions rate (1) 1.8 g/h
Average CO (10) 120 g/h

(1) This appliance is officially tested and certified by an independent agency.

(2) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

(3) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(4) As measured per CSA B415.1-10 stack loss method.

(5) Higher Heating Value of the fuel.

(6) Lower Heating Value of the fuel.

(7) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(8) Optimum overall efficiency at a specific burn rate (LHV).

(9) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

(10) Carbon monoxyde.

GENERAL FEATURES:

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 21"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 12'
Baffle type High quality vermiculite
Approved for an alcove installation Yes
Approved for a mobile home installation No
Shipping Weight 545 lb (247 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 20 1/2" X 12"
Glass air-wash system Yes
Overall dimension (Height) 32 5/8"
Overall dimension (Width) 30 3/4"
Overall dimension (Depth) 22 5/8"
Door opening – dimension (Height) 9 1/2"
Door opening - dimension (Width) 22"
Firebox – dimension (Height) 9 1/2"
Firebox – dimension (Width) 21 7/8"
Firebox – dimension (Depth) 13 1/4"
Moulded refractory bricks Yes
Model Legs
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482
Canadian standard (safety) ULC S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
  Canada United-States
  Single wall pipe Double wall pipe Single wall pipe Double wall pipe
Clearance – back wall 18" 10" 18" 10"
Clearance - corner 16" 8" 16" 8"
Clearance – side wall 16" 16" 16" 16"
Clearance – top (measured from the platform on which the appliance is installed)** 84" 84" 84" 84"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
